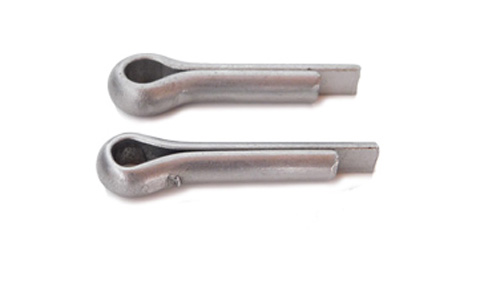

Chavetas Partidas
Chavetas en hierro
x = Existente o disponible
- = Inexistente o no disponible
LARGO | Ø | Ø | Ø | Ø | Ø | Ø | Ø | Ø | Ø | Ø | Ø | Ø | Ø | Ø | Ø |
TOTAL | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | 6.5 | 7 | 7.5 | 8 |
10 | x | x | - | - | - | - | - | - | - | - | - | - | - | - | - |
15 | x | x | x | x | - | - | - | - | - | - | - | - | - | - | - |
20 | x | x | x | x | x | x | x | - | - | - | - | - | - | - | - |
25 | x | x | x | x | x | x | x | x | x | - | - | - | - | - | - |
30 | x | x | x | x | x | x | x | x | x | x | x | - | - | - | - |
35 | x | x | x | x | x | x | x | x | x | x | x | x | x | x | - |
40 | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x |
45 | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x |
50 | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x |
55 | - | x | x | x | x | x | x | x | x | x | x | x | x | x | x |
60 | - | x | x | x | x | x | x | x | x | x | x | x | x | x | x |
65 | - | - | x | x | x | x | x | x | x | x | x | x | x | x | x |
70 | - | - | x | x | x | x | x | x | x | x | x | x | x | x | x |
75 | - | - | x | x | x | x | x | x | x | x | x | x | x | x | x |
80 | - | - | - | x | x | x | x | x | x | x | x | x | x | x | x |
85 | - | - | - | - | x | x | x | x | x | x | x | x | x | x | x |
90 | - | - | - | - | x | x | x | x | x | x | x | x | x | x | x |
100 | - | - | - | - | x | x | x | x | x | x | x | x | x | x | x |
110 | - | - | - | - | - | x | x | x | x | x | x | x | x | x | x |
120 | - | - | - | - | - | x | x | x | x | x | x | x | x | x | x |
Pasadores de aleta partida en IRAM 5146. Acero A34
x = Existente o disponible
- = Inexistente o no disponible
Largo total | Ø | Ø | Ø | Ø | Ø | Ø | |
9 | 9.5 | 10 | 11 | 12 | 13 | ||
30 mm | x | x | x | - | - | ||
40 mm | x | x | x | x | - | ||
50 mm | x | x | x | x | x | x | |
60 mm | x | x | x | x | x | x | |
70 mm | x | x | x | x | x | x | |
80 mm | x | x | x | x | x | x | |
90 mm | x | x | x | x | x | x | |
100 mm | x | x | x | x | x | x | |
110 mm | x | x | x | x | x | x | |
120 mm | x | x | x | x | x | x | |
130 mm | x | x | x | x | x | x | |
140 mm | x | x | x | x | x | x | |
150 mm | x | x | x | x | x | x | |
160 mm | x | x | x | x | x | x | |
170 mm | x | x | x | x | x | x | |
180 mm | x | x | x | x | x | x | |
190 mm | x | x | x | x | x | x | |
200 mm | x | x | x | x | x | x |
